The OFC-X systems are comprised of a common 2-input optical frequency discriminator (OFD). This makes it possible to frequency stabilize two wavelength-distant lasers onto the same optical reference to reduce their frequency fluctuations and to correlate them. Based on this fact, the optical beat frequency between the two stabilized lasers generates a THz or GHz signal that reaches a very low frequency noise level and high frequency stability.
YOUR ULTRALOW NOISE SYSTEMS.
SILENTSYS develops, produces, and commercializes solutions in photonics, microwave/THz, and electronics. With patented designs and extensive expertise, the products are compact and user-friendly. SILENTSYS targets emerging industrial and lab needs, especially in quantum technologies, metrology, sensing, and communications, offering cutting-edge performance tailored to modern applications.
OFC-X: Optical Frequency Correlators
from €35 900
The ultimate device for easy laser frequency correlation: compact and affordable.
SPECIFICATIONS
| MODEL | OFC-ALPHA | OFC-PRO |
|---|---|---|
| Number of optical inputs | 2 | 2 |
| Laser type | single-frequency continuous wave | single-frequency continuous wave |
| Available wavelengths | 385 nm – 2200 nm (to be defined on order) | 385 nm – 2200 nm (to be defined on order) |
| Optical input power | ~200 µW before saturation (at 1.5 µm) | ~200 µW before saturation (at 1.5 µm) |
| Optical input connector | typ. FC/APC connection | typ. FC/APC connection |
| Electrical output voltage range | ±3 V max | ±3 V max |
| Electrical output connector | SMA | SMA |
| Free Spectral Range (FSR) | typ. 2 MHz to 2 GHz | typ. 2 MHz to 2 GHz |
| Frequency noise floor limit | < 0.01 Hz²/Hz | < 0.01 Hz²/Hz |
| Typical laser linewidth achievable | down to Hz-level | down to Hz-level |
| Control of the optical module temperature | external | external |
| Servo Controller | - | Included |
| Input frequency modulation | Option | Included |
| Interface | Touchscreen | Touschscreen and USB |
| Product weight | 8.2 kg | 12 kg |
| Product dimensions | 360 x 360 x 88 mm³ | 430 x 380 x 87 mm3 |
| Price | €35 900 | Pre-order |
| Datasheet |  | |
| User guide |  | |
PERFORMANCES
Typical result of a beat note measured at ~14.5 GHz, when two telecom lasers are free-running (top figure) and locked (bottom figure), respectively.
FUNCTIONAL DIAGRAM

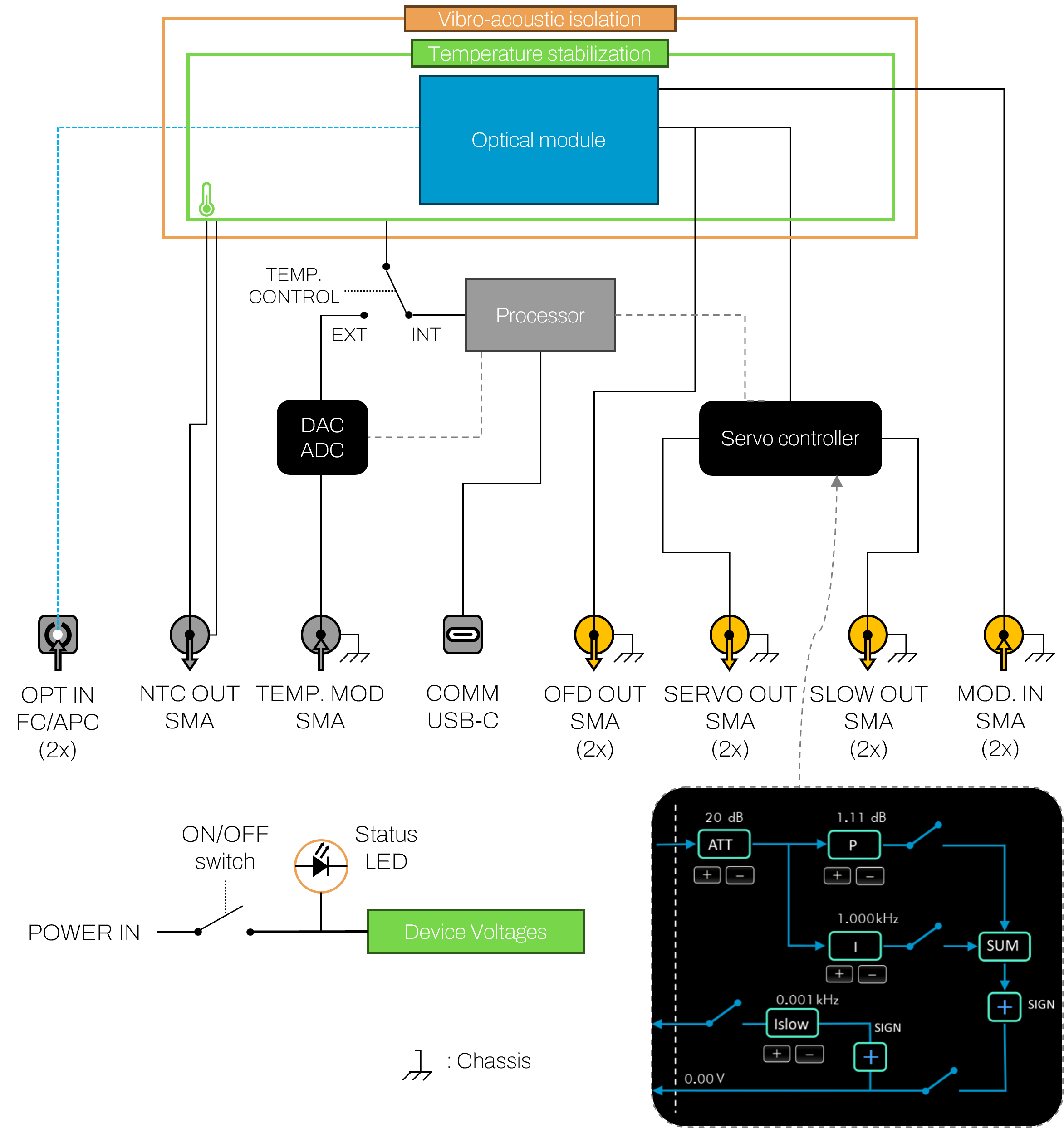

The functional diagram is a simple view of what the instrument does. It enables a fast and simple understanding of the internal functionalities in respect to the system inputs and outputs.
DRAWINGS

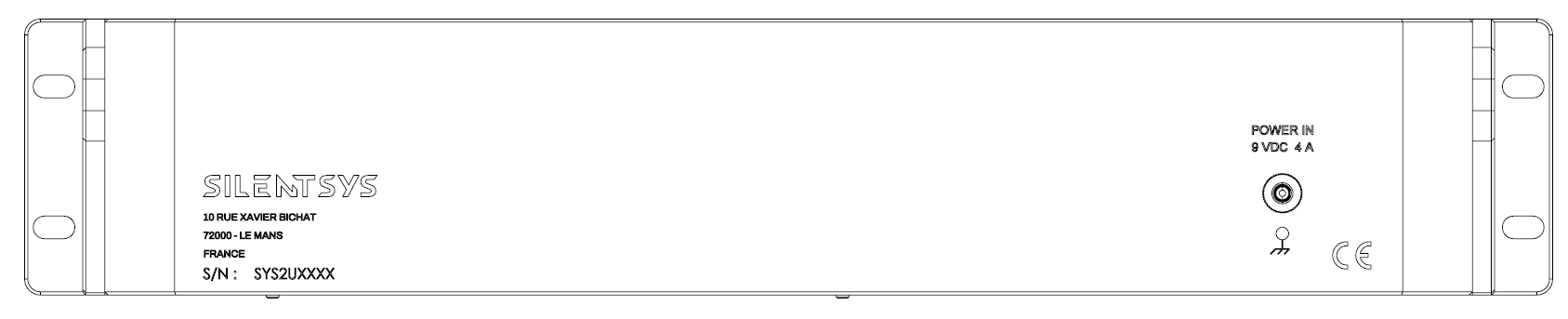

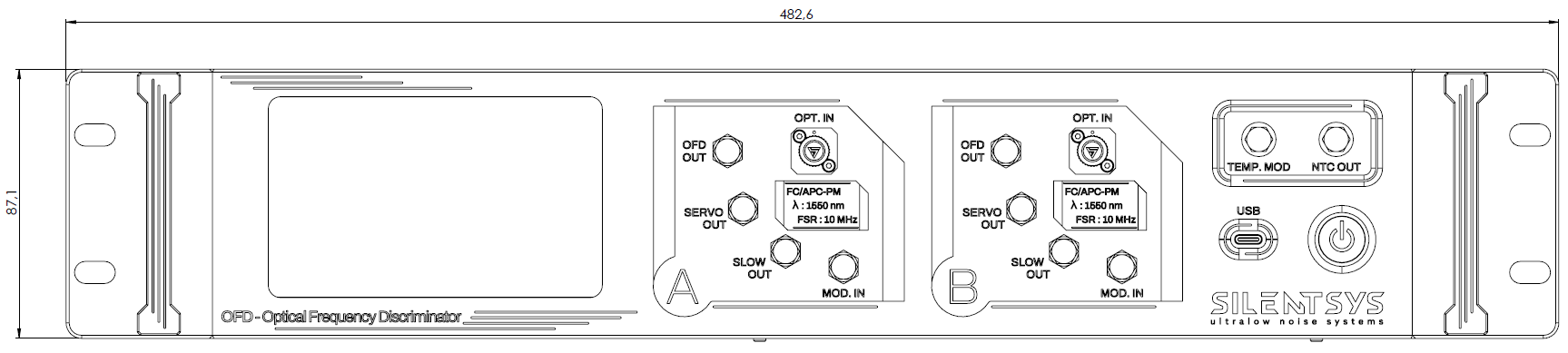

The dimensions of the device are presented here with a simplified view. It also shows the connections from the front and back view of the instrument.
Dimensions are in [mm]
