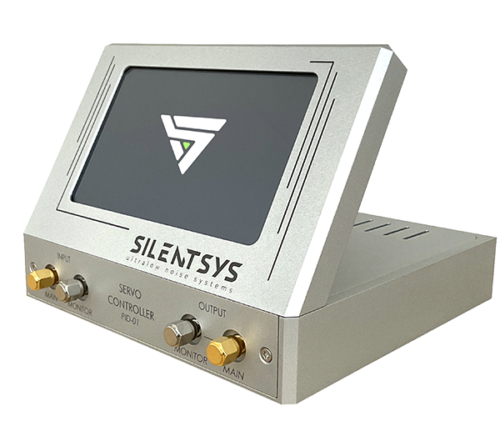

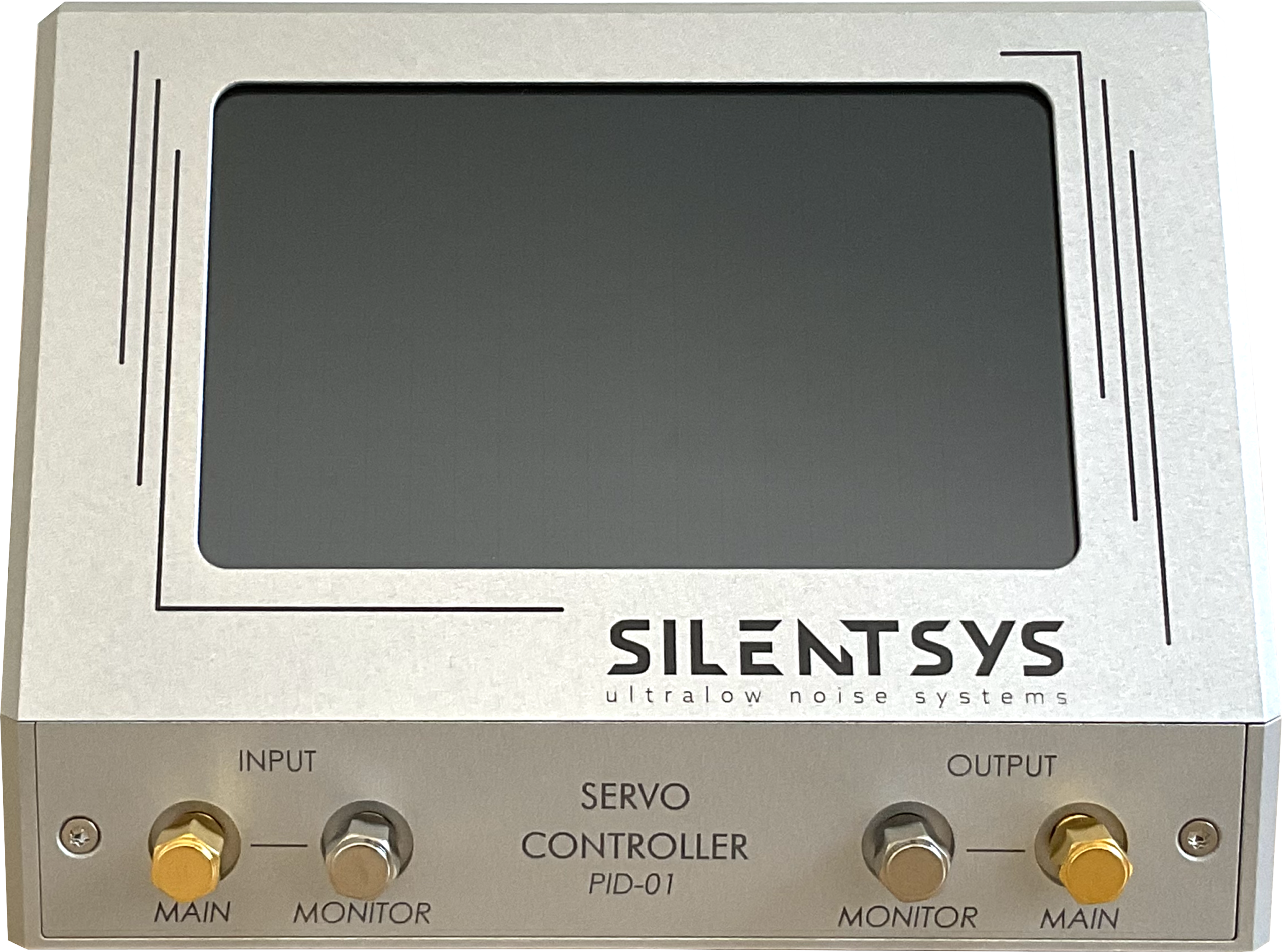

PID-01: High-Speed Servo Controller

from €4 990

Signal stabilization is no longer a laborious task…
Get a lock in JUST 2 clicks!

PID-01 is a high-speed servo controller that is digitally controlled using an integrated touchscreen. It provides Proportional, simple Integrator and double Integrator functions. It features ultralow voltage noise, more than 200 dB open-loop gain, and a bandwidth of > 30 MHz.

SPECIFICATIONS

Number of outputs	1 + one monitor
Number of inputs	1 + one monitor
Input voltage noise	5 nV/√Hz
Output impedance	50 Ω
Input impedance	50 Ω
Input Voltage range max	-5 V / +5 V
Output voltage range max	-4.5 V / +4.5 V
Output/input connectors	SMA female
Control bandwidth	> 30 MHz
Output offset range	- 2 V / + 2 V

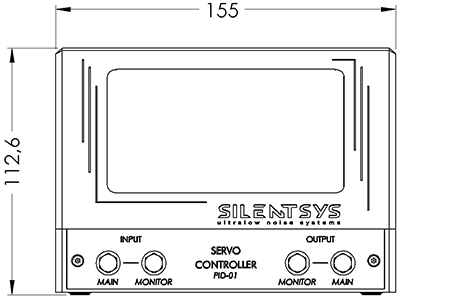

Product dimensions	155 x 150 x 112 mm³
Product weight	approx. 1.5 kg
Proportional Gain	OFF, from - 28 dB to 23 dB (0.2 dB increments)
Simple Integrator	OFF, from 100 Hz to 10 MHz (16 settings)
Double Integrator	OFF, from 100 mHz to 1 MHz (16 settings)
Price	€4 990
Datasheet
User guide

PERFORMANCES

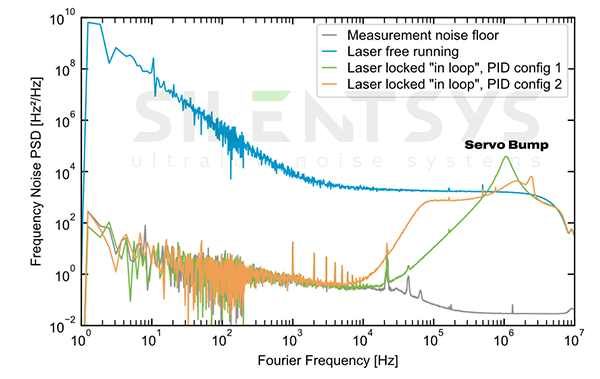

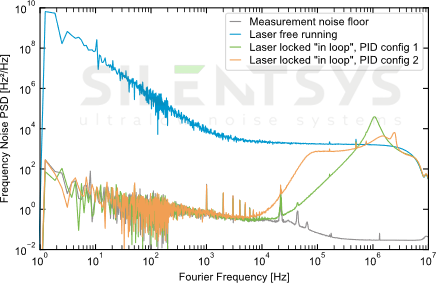

Typical result of laser locking using the PID-01 in two different configurations.

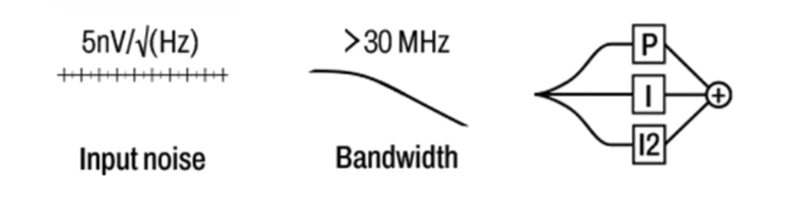

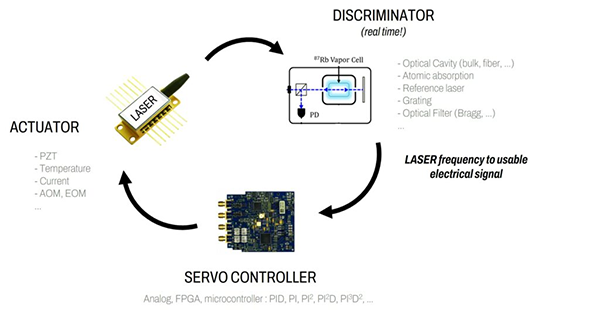

FUNCTIONAL DIAGRAM

The functional diagram is a simple view of what the instrument does. It enables a fast and simple understanding of the internal functionalities in respect to the system inputs and outputs.
