The SLIM LINER, a high spectral purity laser source, is a single-frequency, ultra-narrow linewidth laser. It is based on the Self-Adaptive Photonic Oscillator (SAPO) technology developed by the Institut Foton at Université de Rennes in France. A pump laser is locked onto a cavity using stimulated Brillouin scattering, which offers an extremely narrow gain bandwidth, naturally favoring a high spectral purity.
YOUR ULTRALOW NOISE SYSTEMS.
SILENTSYS develops, produces, and commercializes solutions in photonics, microwave/THz, and electronics. With patented designs and extensive expertise, the products are compact and user-friendly. SILENTSYS targets emerging industrial and lab needs, especially in quantum technologies, metrology, sensing, and communications, offering cutting-edge performance tailored to modern applications.
SLIM LINER: Lowest Phase Noise Brillouin Laser
from €49 900
The narrowest-linewidth laser ever created…
Frequency noise < 0.0005 Hz²/Hz !
SPECIFICATIONS
| Laser emission | continuous wave (CW) |
| Available wavelengths | 1529 to 1562 nm (customizable) |
| Output power | typ. 10 mW (customizable) |
| Polarization Extinction Ratio (PER) | typ. > 20 dB |
| Optical output connector | FC/APC with narrow key |
| RIN | typ. <-150 dBc/Hz at 1 MHz |
| Temperature control input voltage range | ±5 V |
| NTC resistance reading connector | SMA |
| Temperature control input connector | SMA |
| Power supply plug | P1J |
| Product dimensions | 360 × 360 × 88 mm³ |
| Product weight | 5.5 kg |
| Datasheet |
 |
| User guide |
 |

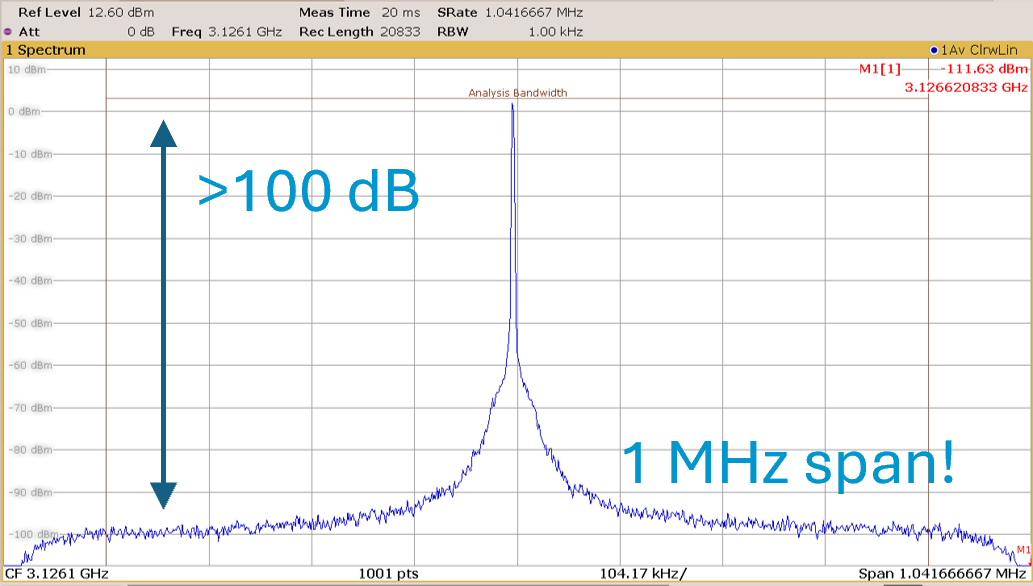

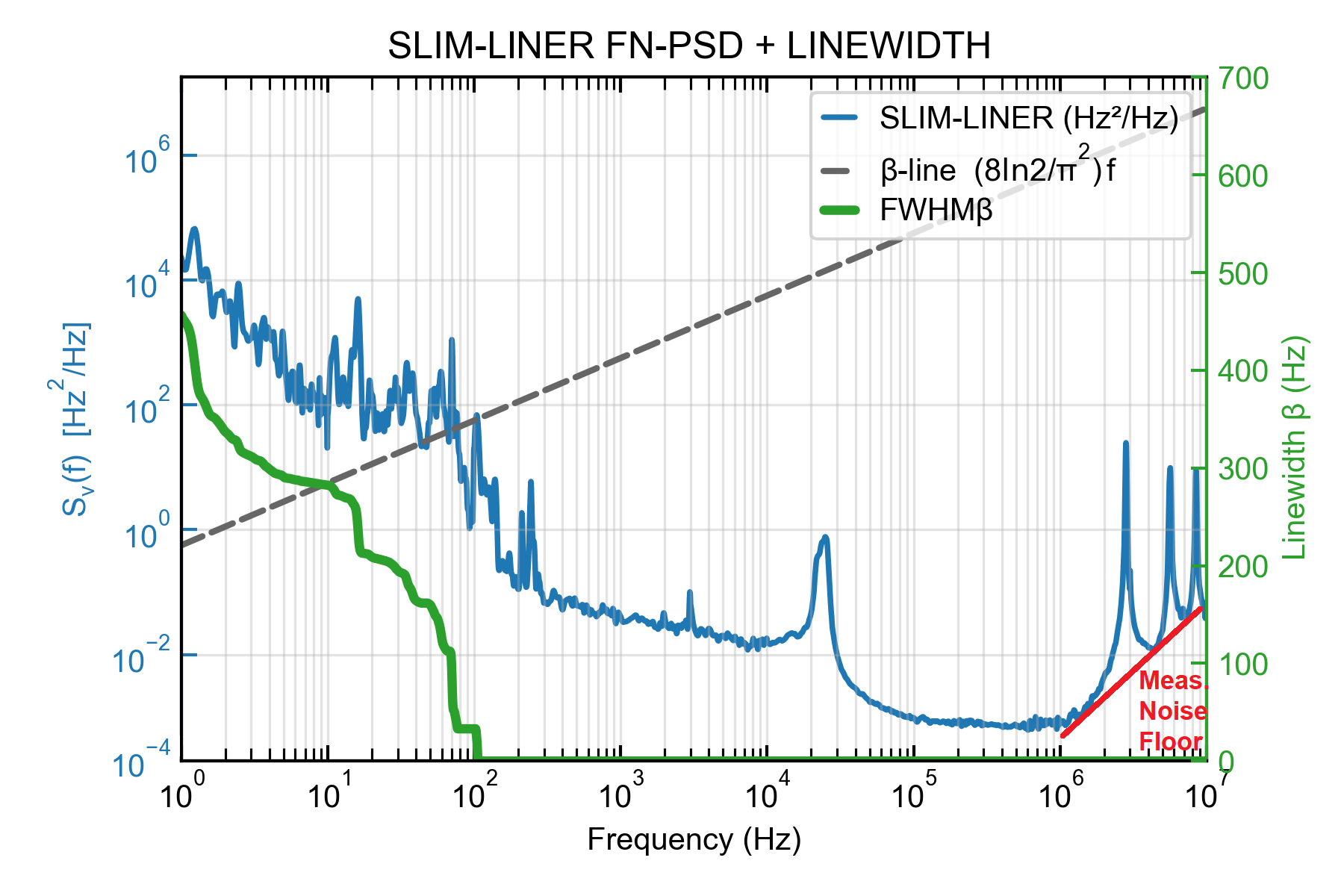

PERFORMANCES
FUNCTIONAL DIAGRAM
The functional diagram is a simple view of what the instrument does. It enables a fast and simple understanding of the internal functionalities in respect to the system inputs and outputs.

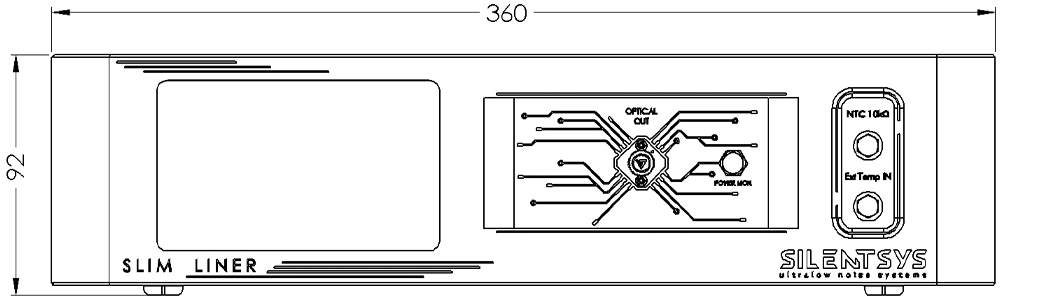

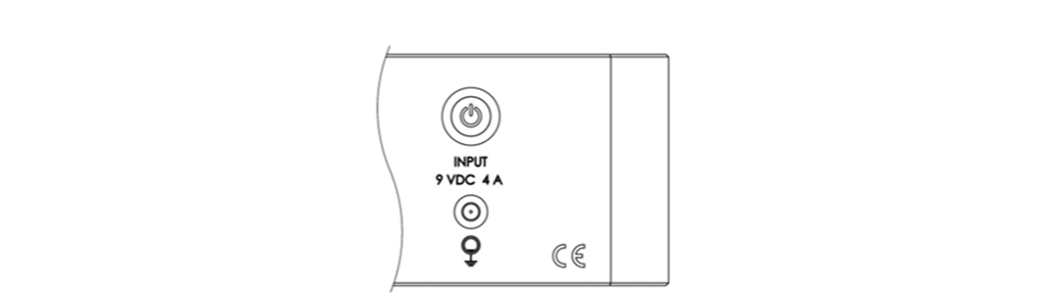

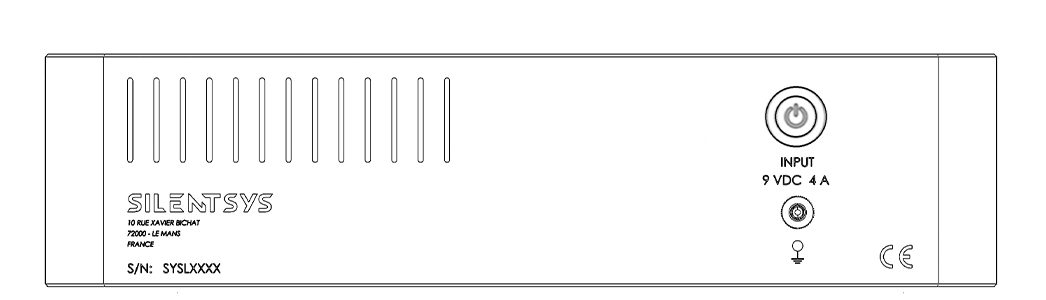

DRAWINGS
The dimensions of the device are presented here with a simplified view. It also shows the connections from the front and back view of the instrument.
Dimensions are in [mm]
