OFD: Optical Frequency Discriminator

from €29 900

The ultimate device for easy laser frequency stabilization: compact and affordable.

The OFD system smartly delivers a voltage signal that is proportional to the frequency fluctuations of the input laser beam. This turn-key module is suitable for laser frequency noise characterization and/or for laser frequency stabilization to drastically reduce its optical “full width at half maximum” linewidth. The OFD features ultralow noise performances, successfully achieving a frequency noise level as low as 0.01 Hz²/Hz. All this in a compact and user-friendly package.

SPECIFICATIONS

Laser type	Single-frequency continuous wave
Available wavelengths	400 nm – 2200 nm (to be defined on order)
Optical power in	~200 µW before saturation
Optical input	Typ. FC/APC connection
Electrical output voltage range	±3 V max
Electrical output connector	SMA female
Free Spectral Range (FSR)	Typ. 4 MHz to 2 GHz
Frequency noise floor limit	< 0.01 Hz²/Hz
Typical laser linewidth achievable	Down to Hz-level
Product weight	8.2 kg

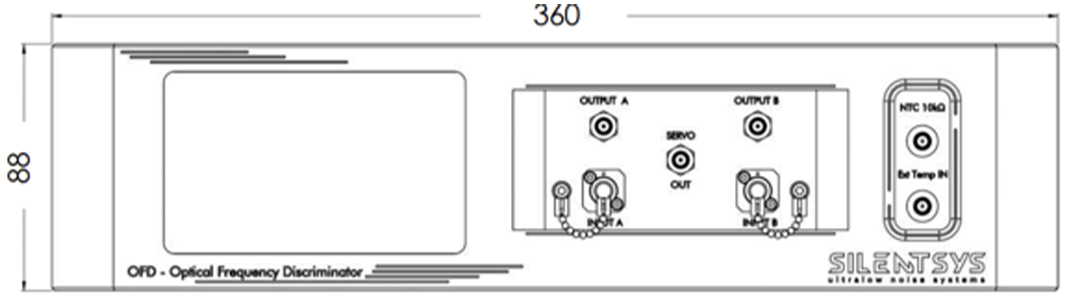

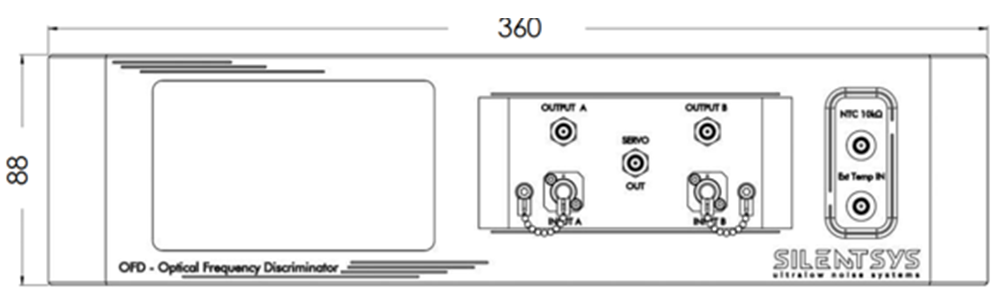

Product dimensions	360 x 360 x 88 mm³
Control of the optical module temperature	External
Datasheet
User guide

PERFORMANCES

OFD used with 1557 nm telecom laser diode

OFD used with 1064 nm tunable external cavity laser diode

FUNCTIONAL DIAGRAM

The functional diagram is a simple view of what the instrument does. It enables a fast and simple understanding of the internal functionalities in respect to the system inputs and outputs.
